50mm Hollow Magnesium Cleanroom Panel

short description:

Model: BPA-CC-06、BPB-CC-04

▤AILV panels: BPA-CC-06 50mm or BPB-CC-04 75mm, double layer 5mm magnesium board and color-coated steel faces. Choose 980mm or 1180mm modules, 0.5mm or 0.6mm faces and the specified aluminum or socket connection.

Ask for best price

Product Specification

Product Detail

Product Tags

Factory Show

Product Specifications

AILV / CLEANROOM PANELS

Choose the 50mm BPA-CC-06 or 75mm BPB-CC-04 configuration with AILV. These hollow magnesium cleanroom panels combine color-coated steel faces with the specified double layer 5mm magnesium board. Set 980mm or 1180mm modules and confirm internal support or infill on the fabrication drawing.

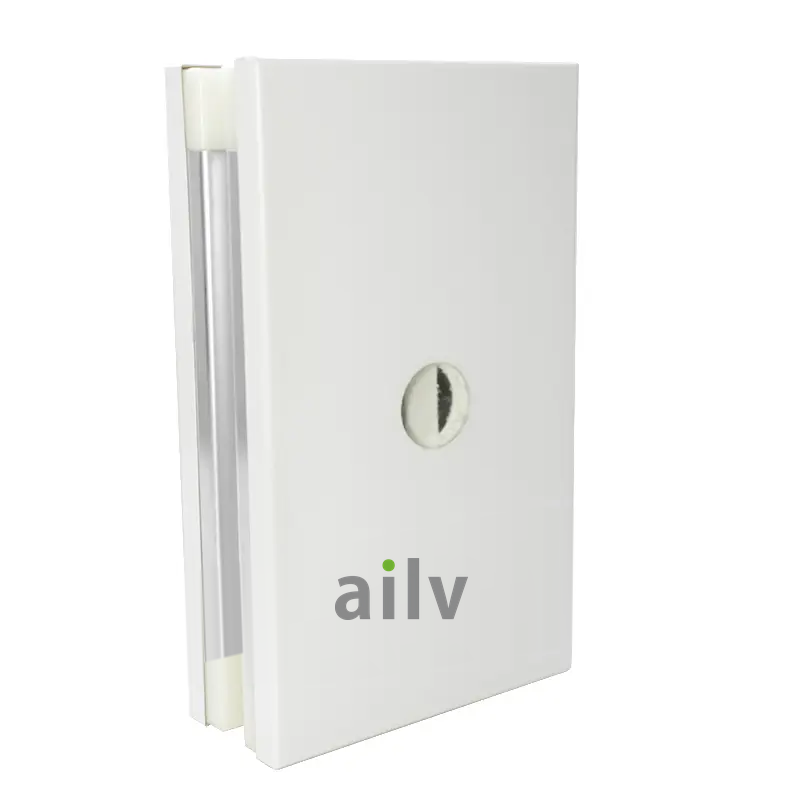

AILV 50mm Hollow Magnesium Cleanroom Panel

Two thicknesses and module widths

BPA-CC-06 identifies the 50mm configuration; BPB-CC-04 identifies the 75mm configuration. Use 980mm or 1180mm modules and include any non-standard size in the drawing enquiry.

Face plates and connection details

Choose 0.5mm or 0.6mm face plates and specify the face treatment. Coordinate central aluminum or male-and-female socket connections with the panel edge and adjoining frame details.

Name:	50mm Hollow Magnesium Panel	75mm Hollow Magnesium Panel
Model:	BPA-CC-06	BPB-CC-04
Description:	● color coated steel plate ● hollow magnesium ● color coated steel plate	● color coated steel plate ● hollow magnesium ● color coated steel plate
Panel thickness:	50mm	75mm
standard modules:	980mm、1180mm non-standard can be customized	980mm、1180mm non-standard can be customized
Plate material:	PE polyester, PVDF (fluorocarbon), salinized plate, antistatic	PE polyester, PVDF (fluorocarbon), salinized plate, antistatic
Plate thickness:	0.5mm、0.6mm	0.5mm、0.6mm
Fiber Core Material:	Double layer 5mm magnesium board	Double layer 5mm magnesium board
connection method :	Central aluminum connection, male and female socket connection	Central aluminum connection, male and female socket connection

Previous: Clean Room Coated Steel Door

Next: 50mm Paper Honeycomb Cleanroom Panel

Assembly Drawing and Order Scope

▤

Lay out the wall run with its openings, service penetrations and corner returns so that panel modules and connection positions can be checked together. Select the required thickness before preparing the order, and include any non-standard module size in the drawing enquiry.

↔

Ask AILV to confirm the internal support and infill arrangement on the fabrication drawing for the selected model. Put the chosen face treatment, edge closures and connector positions on the same schedule so that the supplied assembly can be coordinated with adjoining panels and frames.

▥

Steel faces and magnesium boards

Order color-coated steel faces at 0.5mm or 0.6mm with galvanized steel strips for edge banding and stiffeners. Specify the double layer 5mm magnesium board configuration and the heat, pressure and glue-curing process; confirm any remaining internal support and infill on the fabrication drawing.

▣

Configuration and joining schedule

Order BPA-CC-06 for 50mm or BPB-CC-04 for 75mm. Identify the 980mm or 1180mm module and the selected aluminum or socket connection on the panel schedule.

50mm Hollow Magnesium Cleanroom Panel
