Pharmaceutical Cleanroom Applications

K-STONE Engineering + AILV

From production routes to a working cleanroom

Pharmaceutical rooms connect people, materials, equipment and controlled environments. K-STONE Engineering develops the layout and building systems; AILV manufactures the enclosure products that turn the design into physical rooms.

Panel-lined room with ceiling lights, wall windows and equipment at the far end — Panel-lined room with ceiling fittings and observation windows.

Follow the process through the rooms

Begin with the production steps and the relationship between preparation, processing, holding and packaging areas. Room use, equipment access and cleaning activities shape the layout before individual panels or doors are selected.

Personnel and material routes are reviewed separately, then brought together at changing areas, transfer points and production-room boundaries.

Personnel route

Entry and changing
Access to the work area
Work, cleaning and return

Material route

Receiving and preparation
Transfer to processing
Holding and packaging

Design the enclosure and its engineering systems

Layout design is developed alongside HVAC, electrical services, utilities and monitoring. Equipment locations, air distribution and service access must work together with the ceiling, room boundaries and maintenance arrangements.

K-STONE Engineering supports design development, system installation and commissioning within the agreed project scope. The planned process and operating conditions define the environmental targets and required handover documents.

Exterior air-handling units with large ducts and access panels — Air-handling units with exterior ducts and access panels.

Manufacture the room details that matter

AILV panels, ceilings, doors, windows and supporting components form the enclosure around that design. Joint details, opening sizes, cleaning exposure and equipment penetrations are resolved as a connected room system.

Compare panel constructions and doors and windows using the actual product parameters and selected configuration.

Close view of stacked panels and their edge connections — Stacked panels with their edge connections visible.

Build, check and hand over

1

Design

Translate the process and room requirements into layouts and system design.
2

Manufacture

Prepare AILV room components against the approved arrangement and product specification.
3

Install

Install enclosure and engineering systems with site sequencing and inspection points.
4

Commission

Check the agreed operating conditions and complete the project handover records.

Stacked door leaves with vision windows and visible hinges — Door leaves with vision windows stacked on pallets.

Open electrical cabinets with routed wiring and switching devices — Open electrical cabinets with wiring and switching devices.

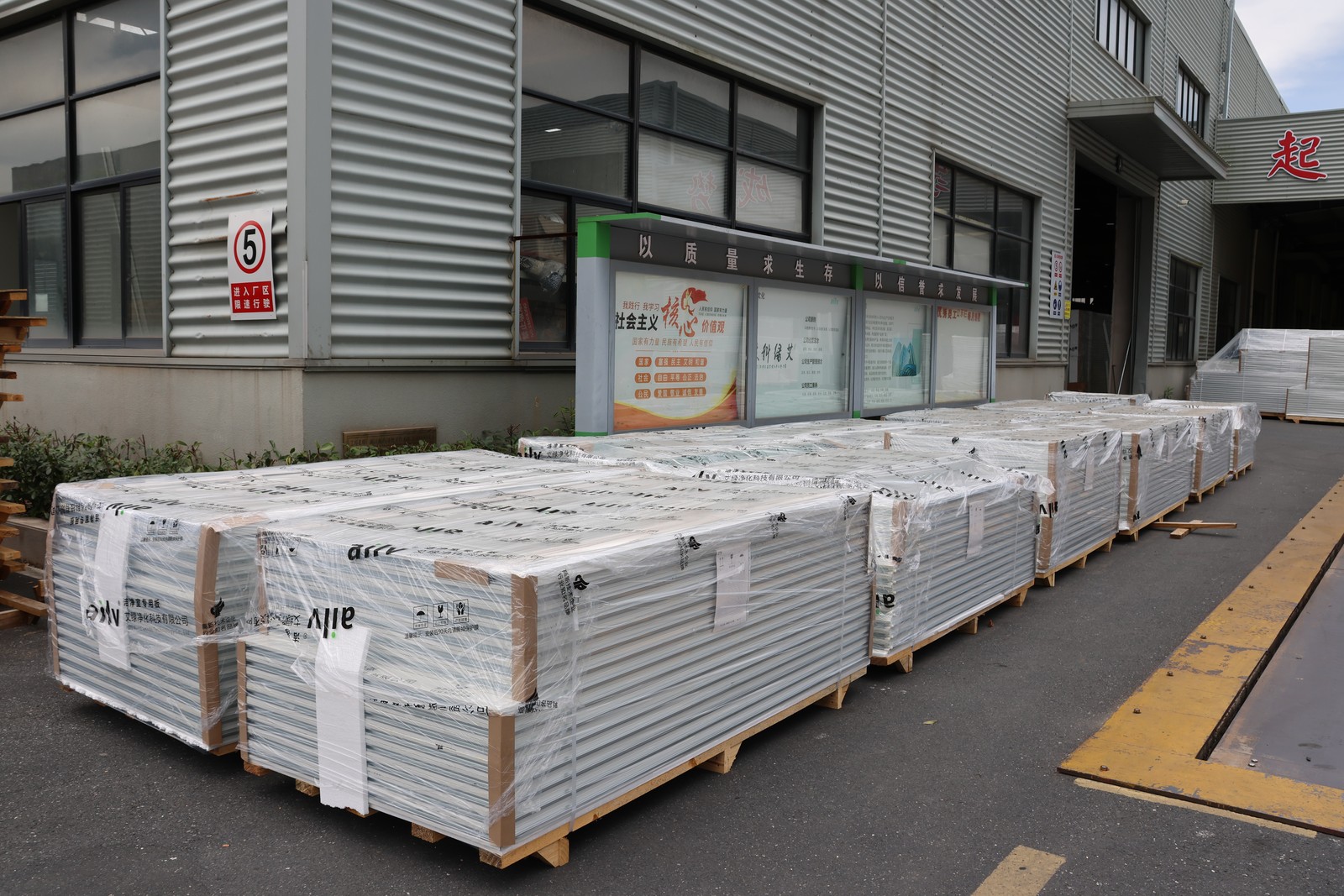

Wrapped panel packs with protective corners on timber pallets — Wrapped panel packs with edge protection on timber pallets.

Discuss your cleanroom project

Start with the process, room use and planned equipment. Contact our team or explore our project portfolio.
