Class II Bio-Safety Cabinet

short description:

Class II, type A2 and type B2 biological safety cabinets provide personnel, product and environmental protection from hazardous particulates such as agents that require Biosafety Level 1, 2 or 3 containment.. Type A2 cabinets recirculate HEPA filtered air, and type B2 biosafety cabinets duct 100% of filtered air to the exterior.

Sothis SX-BHC series biological safety cabinets belong to class II biological safety cabinets.They are designed and produced in strict accordance with NSF-49 compliance.


Product Specification

Product Detail

Product Tags

Features

1.It provides a better operating experience with ergonomic 10° tilt angle design.

2. The surface is made of premium cold-rolled steel plate with electrostatic sprayed and the three sides of the safety cabinet operating area are made of stainless steel (SUS304) integrated structure and 8mm large round corner interior which is easy to clean.

3. Vertical laminar flow negative pressure features,duct 100% of filtered air to the exterior.

4. The exhaust air has a special HEPA filter.

Applications

It is used to protect people、 test samples and environment, and can meet the requirement of pathogen operation level 1/2/3.

Technical Datasheet

Model

BSL-BHC-1000A2

Cleanliness level

ISO5(Class100)/ISO4(Class10)

Filter level / filter efficiency

HEPA/ULPA ≥99.995~99.999% @0.3μm

Average downdraft velocity

(m/s)



0.25~0.45m/s

Average inflow velocity

(m/s)

≥0.5m/s

Noise

≤65dB(A)

Vibration peak

≤5μm

Power supply

AC  220V/50Hz

Air balance biological protection

Personnel protection(1-8CFU/ml)
(3 times repeat,5min/time)

Total number of colonies in impact sampler:≤10CFU/time

total colony count :≤5CFU/time

Cross contamination protection(1-8CFU/ml)
(3 times repeat,5min/time)
total colony count :≤2CFU/time

maximum power(KV*A)

0.8

Air tightness

Leakage ≤ 10% under 500pa pressure
(within 30 minutes)

Weight

300Kg

Working area W*D*H(Cm)

100*62*62

Size

 W*D*H(CM)

120*78*216

Specification and quantity of
supply air filter

1040*445*50①

Specification and quantity
 of exhaust air filter)

665*410*50①

Specification and quantity of
fluorescent lamps

30W③

Specification and quantity of
 ultraviolet lamp

30W①

illumination)

650LX

Diameter of air supply and exhaust pipe

Φ250mm

Wind direction

Ejection

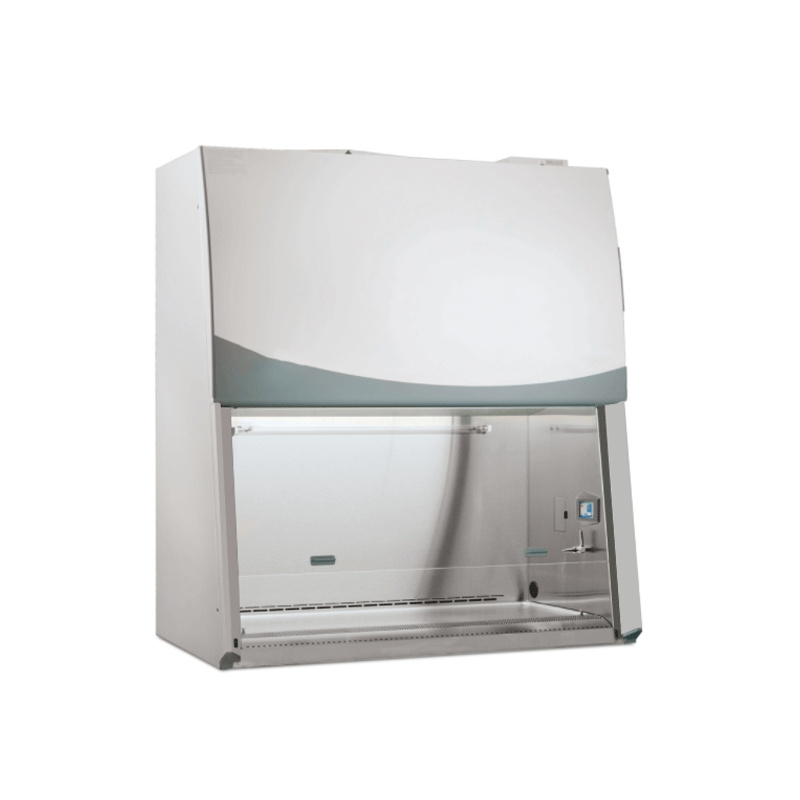

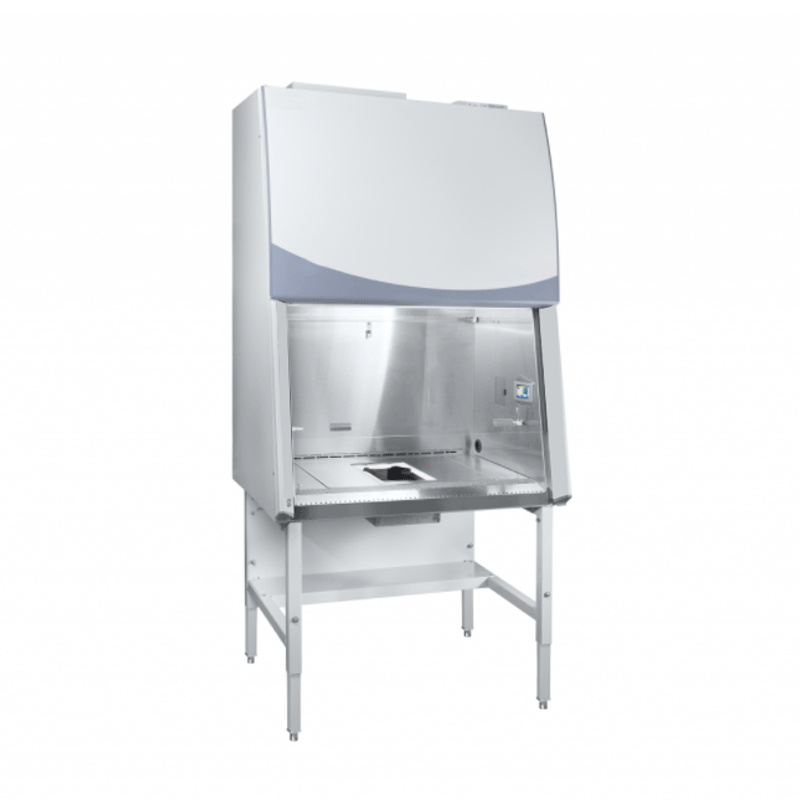

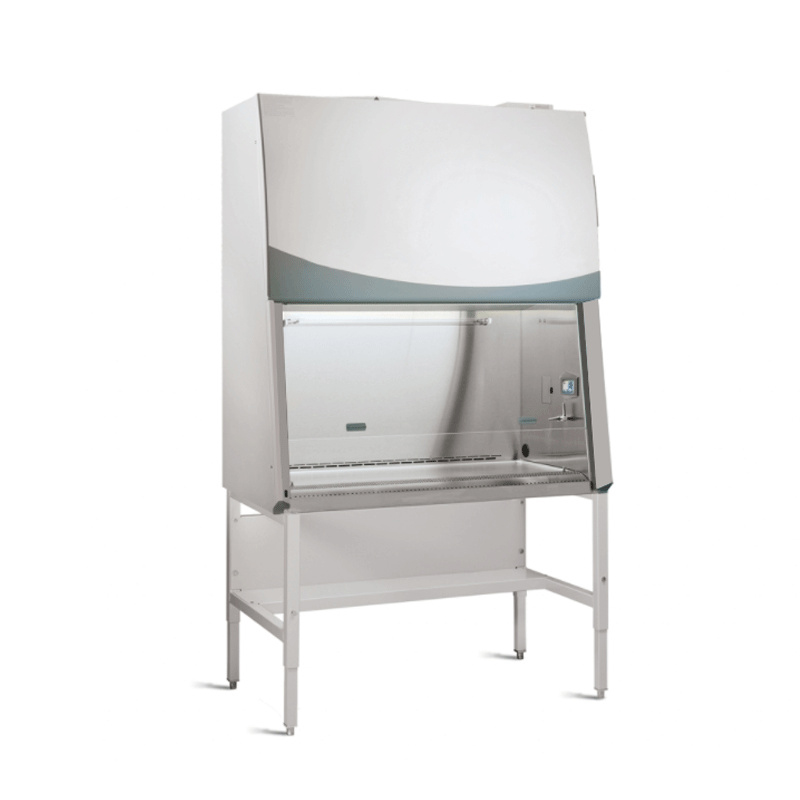

Product Display

Bio-Safety Cabinet
Bio-Safety Cabinet
Bio-Safety Cabinet
