Name |
Laminar Flow Transport Carts |
|
Clean level |
ISO5 (level 100 FS209E) |
|
Colony count |
≤0.5 / dish * (ø 90 Petri dish) |
|
Average wind speed |
0.36~0.54m/s (adjustable) |
|
noise |
≤65dB（A） |
|
Half peak of vibration |
≤4um |
|
power supply |
AC 220V/50HZ |
|
High efficiency filter |
Filter efficiency H14 (99.995%~99.999%@0.3um) |
|
battery |
Lead acid/lithium batteries |
|
The controller |
Light touch microcomputer controller |
|
Battery life |
≥2H (can be customized according to customer needs) |
Product Display

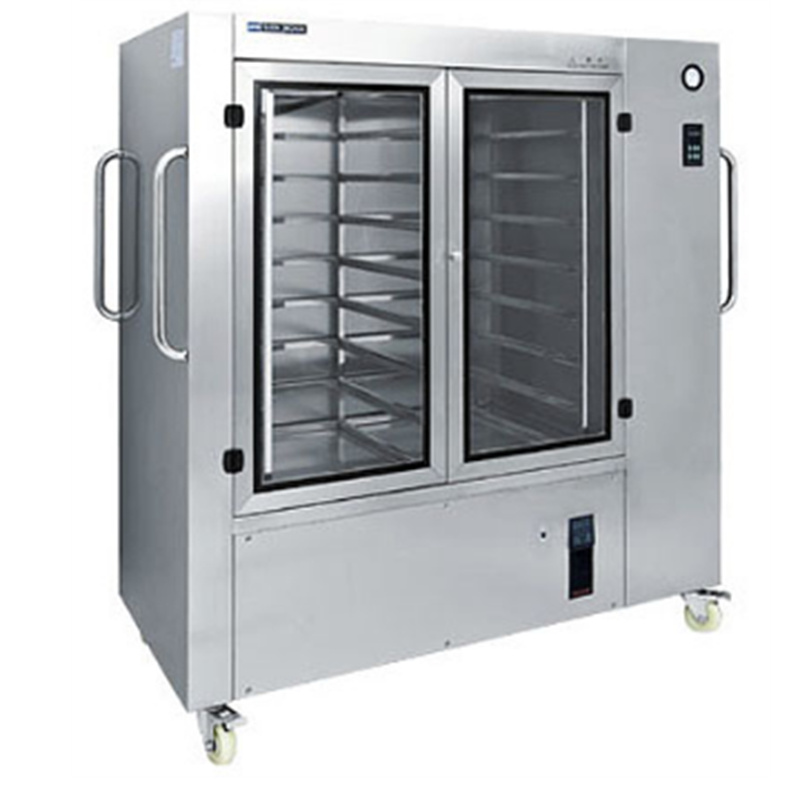

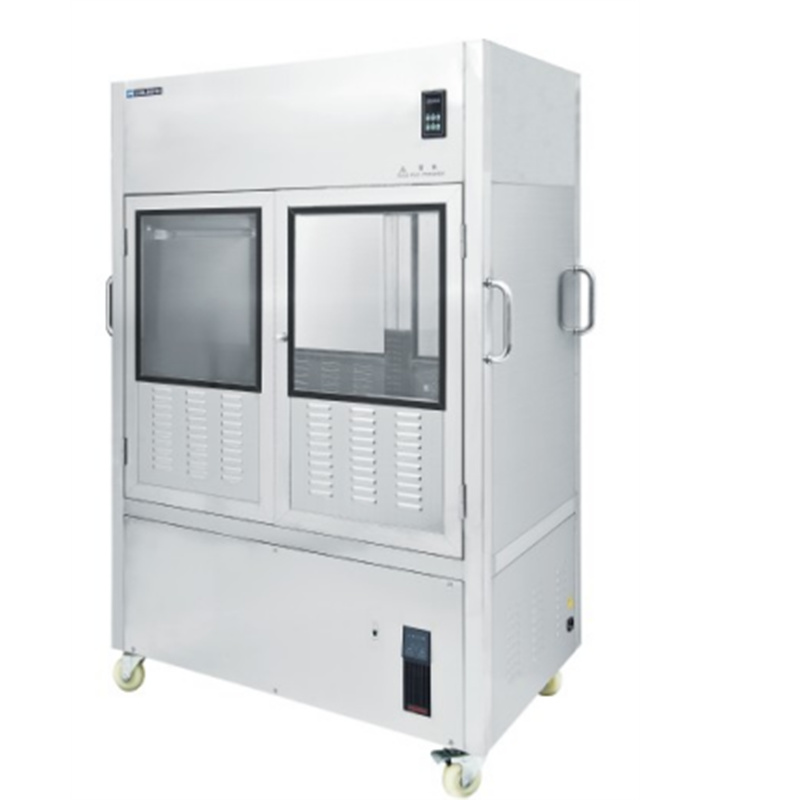

Czy-sus laminar flow transport carts is a laminar flow type air purification equipment which provides a removable local dustless and sterile environment. It is used for moving articles in clean rooms such as medicine and health, scientific research and electronics.
The laminar flow transport carts is made of 304/316L stainless steel plate. The bottom of the vehicle is equipped with universal caster with brake device. The body is composed of shell, high efficiency filter, air supply system, lighting, operation module and so on. In addition, uv germicidal lamp, microcomputer controller, lead-acid battery or lithium battery, UPS power supply device and so on can be added according to the need. The equipment has the advantages of simple structure, flexible movement, convenient operation, beautiful appearance and so on.
Product features
1. The interior can be used as a frame to place the tray
2. Horizontal or vertical laminar flow can be customized as required
3.DOP test port can effectively cooperate with the integrity of the filter
4. Optional pressure difference display, wind speed display and real-time monitoring of cleanliness
Applications
It is a general local purification equipment used in the partition between clean room and outside.It is used to shower when people or articles enter the clean area.It can effectively reduce the dust source into the clean area.
