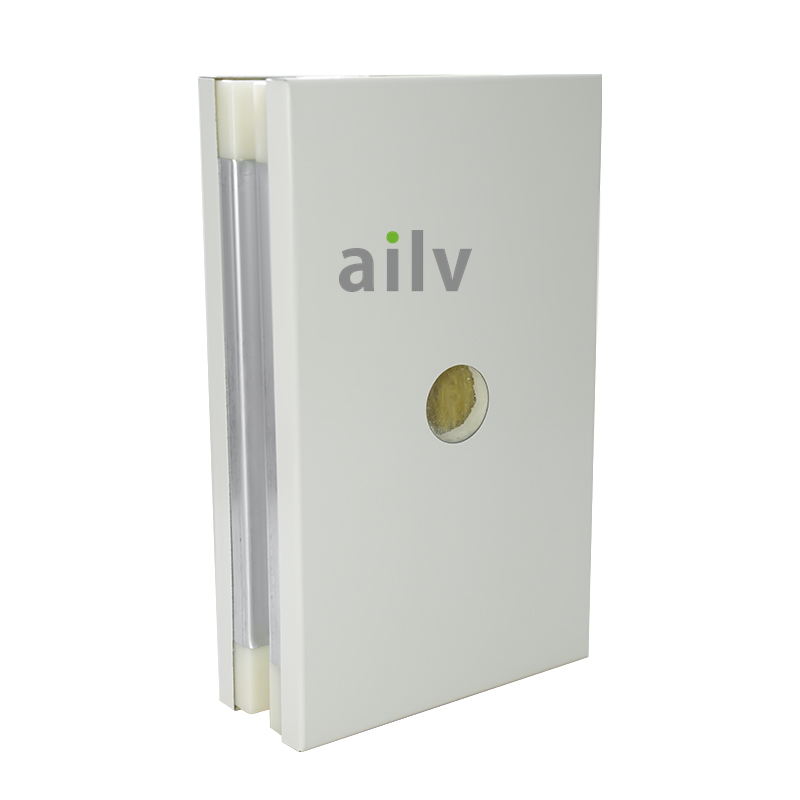

50mm Double Gypsum&Rockwool Panel

short description:

Model: BPA-CC-13 BPB-CC-03

▤ Prepare double gypsum and rockwool panel quantities with selected section drawings, opening references, complete-panel counts and identified cut pieces.

Ask for best price

Product Specification

Order Scope

Product Tags

Factory Show

Product Specifications

AILV MATERIALS

Keep layered panels identifiable through packing

Prepare double gypsum and rockwool panel quantities with layer-section references, opening locations and separately marked cut pieces.

Layer reference

Identify the requested gypsum and rockwool section beside each panel item code.

Boundary pieces

Mark the panels adjoining door, window and service openings on the material schedule.

Package labels

Keep cut-piece references and complete-panel quantities separate when preparing the packing list.

Name:	50mm Double Gypsum&Rockwool Panel	75mm Double Gypsum&Rockwool Panel
Model:	BPA-CC-13	BPB-CC-03
Description:	● color coated steel plate ● gypsum ● rock wool ● gypsum ● color coated steel plate
Panel thickness:	50mm	75mm
standard modules:	980mm、1180mm non-standard can be customized
Plate material:	PE polyester, PVDF (fluorocarbon), salinized plate, antistatic
Plate thickness:	0.5mm、0.6mm
Fiber Core Material:	Rock wool 120K+ double layer 9.5mm gypsum board
connection method :	Central aluminum connection, male and female socket connection
